Vail Lite

Vail Lite

$21.99

Free Shipping

Smallest plug-and-play CW keyer interface (USB stick form factor). Assembled, ready to use. Free shipping.

SKU: VAIL-LITE Category:

Description

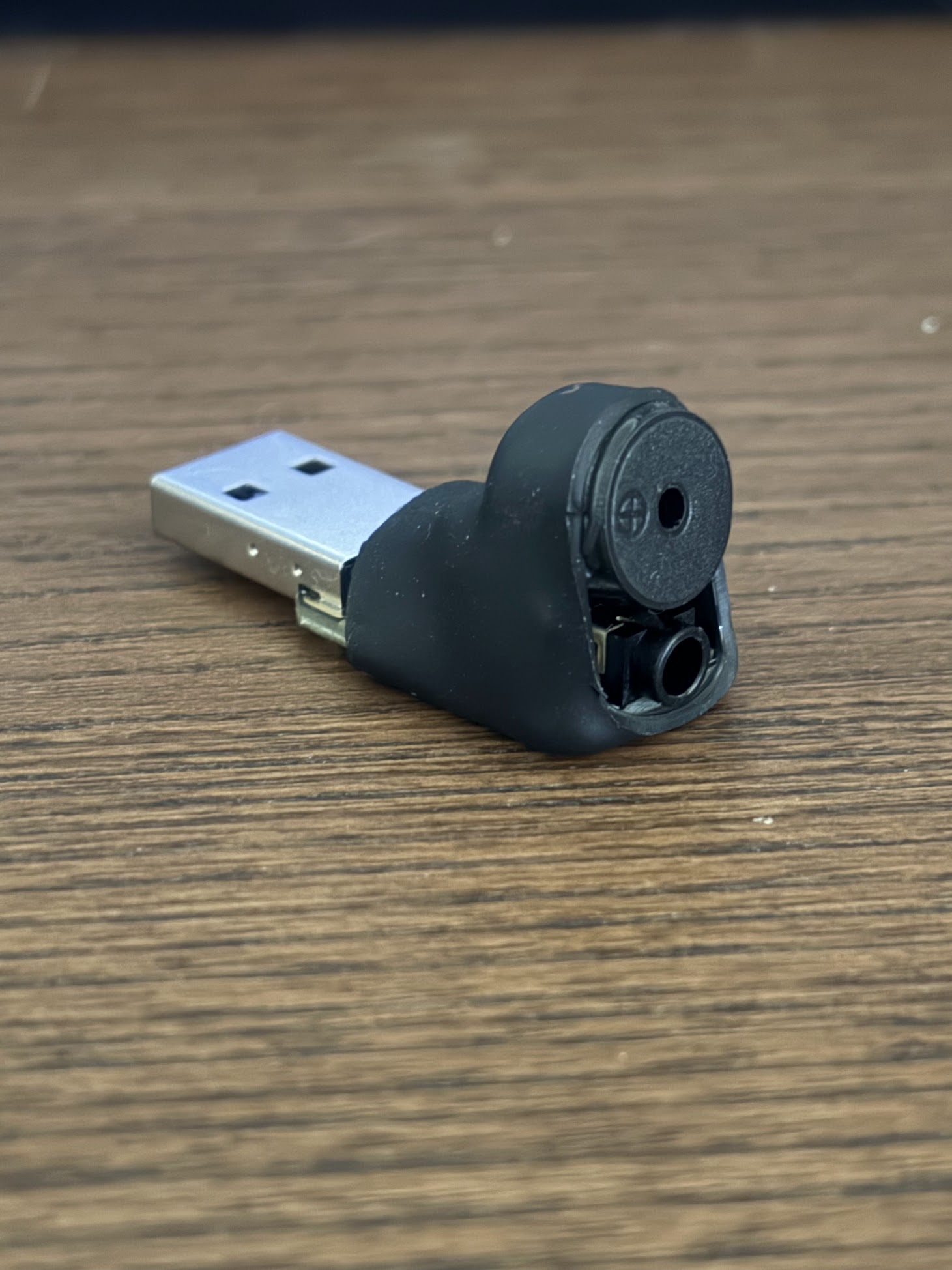

The Vail Lite is the smallest and simplest member of the Vail Adapter family — a plug-and-play USB CW keyer interface built on the Adafruit TRRS Trinkey (SAMD21). About the size of a USB stick, it ships pre-programmed with a piezo sidetone buzzer installed.

Features

  • USB HID keyboard output (dit/dah)
  • USB MIDI support for Morse apps and games
  • Full keyer modes: Straight, Bug, Iambic A/B, Ultimatic and more
  • Built-in 3.5mm TRRS jack and sidetone buzzer
  • Truly plug-and-play — no drivers, no setup

Note: no buttons, audio jack, CW memory, radio output, or Button Hat support — step up to the Basic or Advanced for those.

Best for: practice on vailmorse.com, portable laptop CW, and travel use. Assembled and shipped by Brett (KE9BOS), a main contributor to the Vail project.

Additional information

Weight 0.10 lbs

Reviews

There are no reviews yet.

Be the first to review “Vail Lite”

Your email address will not be published. Required fields are marked *

Compare all Vail devices▾
FeatureVail LiteVail BasicVail AdvancedDIY No PCBVail Summit
Form FactorUSB StickPCB + CasePCB + CaseBreadboardDevice
StandaloneNoNoNoNoYes
USB HID/MIDI✓✓✓✓—
Vail Zoomer Compatible✓✓✓✓—
SidetoneBuzzerBuzzerBuzzerBuzzerSpeaker
Audio Output Jack—✓✓OptionalSpeaker
Button Control—OptionalOptionalOptionalDisplay UI
CW Memory—✓ USB only✓ USB & Radio✓ USB only✓ USB & Radio
Radio Output——✓Optional✓
Capacitive Touch Keying——✓Optional✓
Practice Oscillator Mode✓✓✓✓✓
Display————4" Screen
WiFi / BT————✓
Battery————✓
Training Modes————✓
Price$21.99from $26.99from $31.99DIY~$85 (beta)

DIY No PCB is a build-it-yourself spec (GitHub) — not sold here. Vail Summit is in beta.
